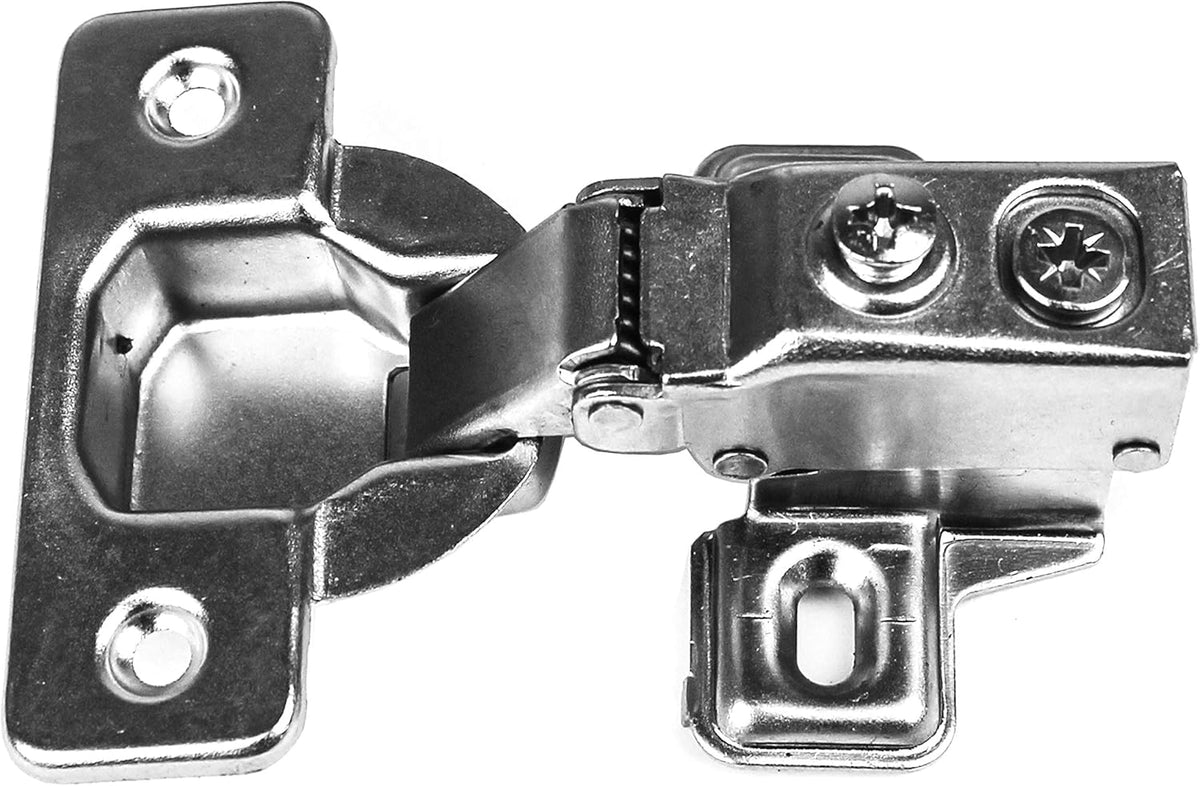

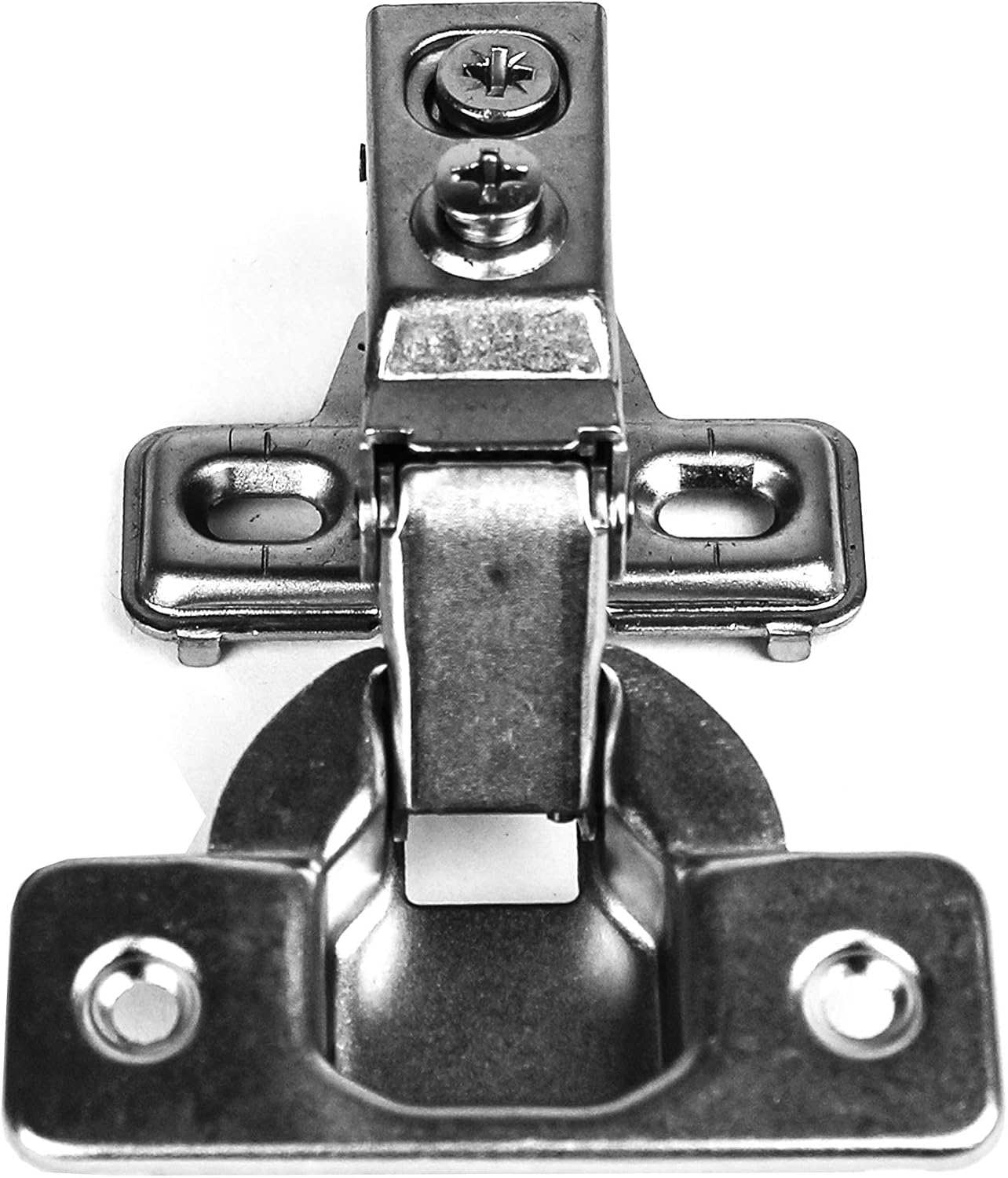

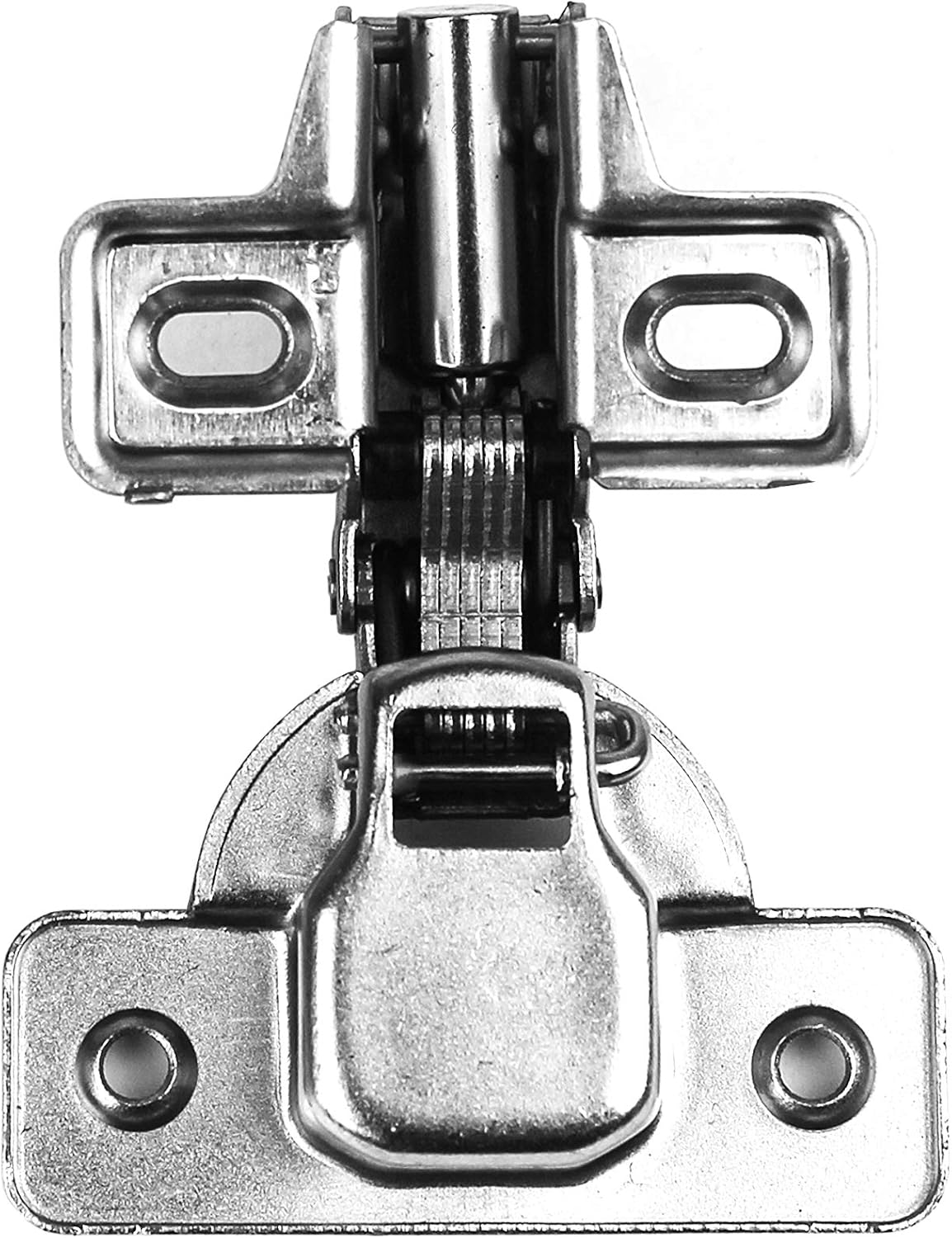

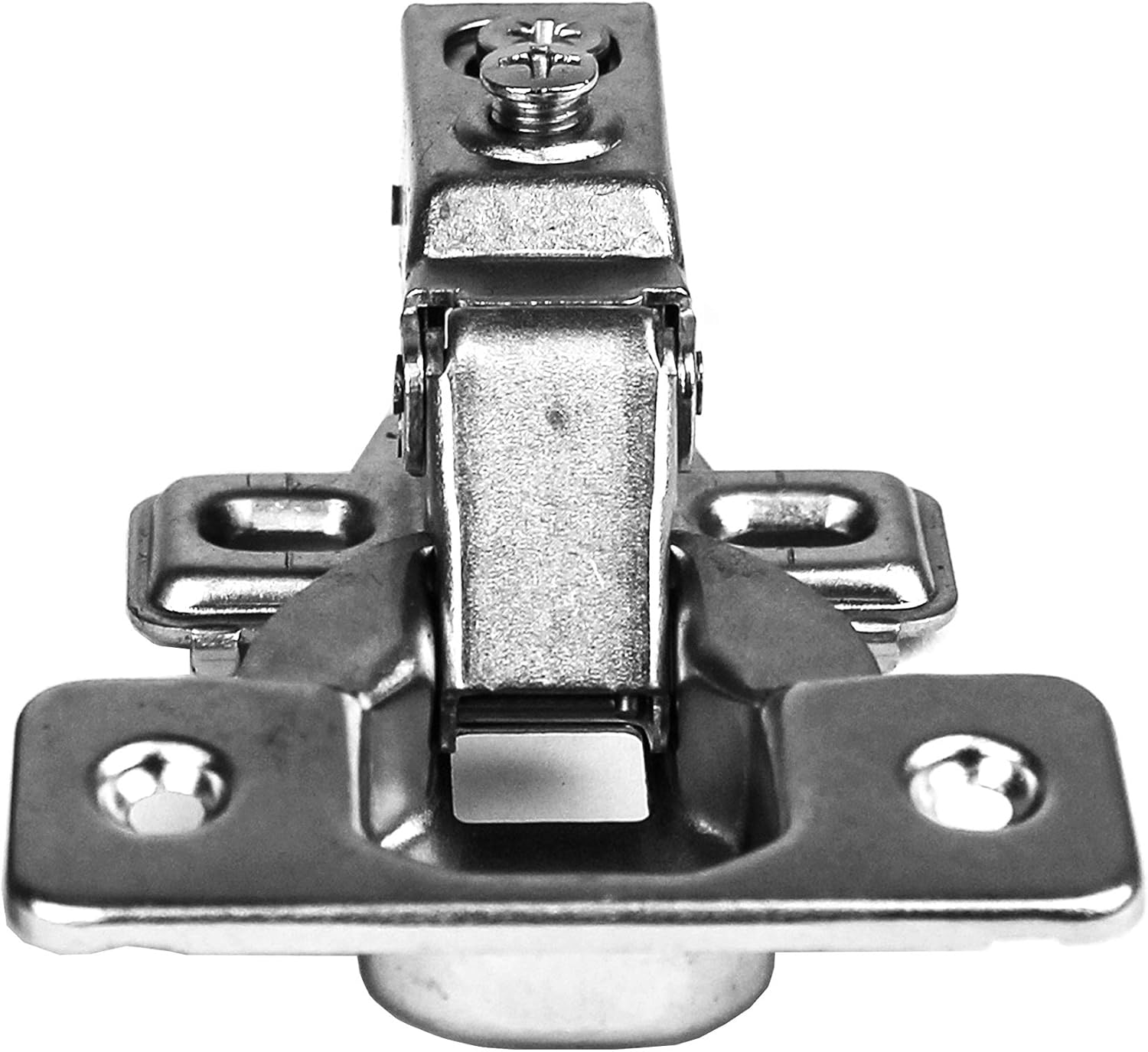

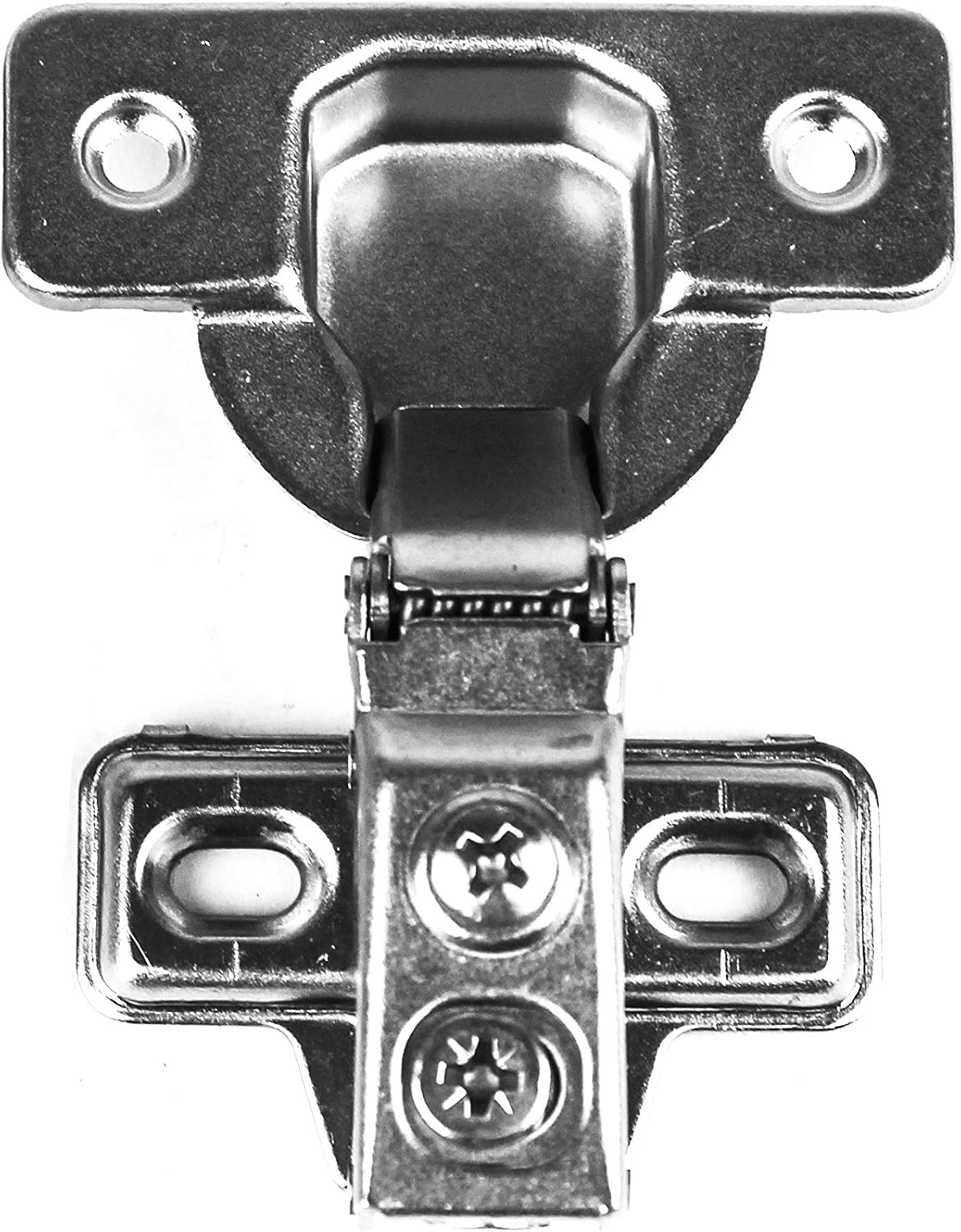

30 Pieces 3/8 inch Overlay Soft Closing Concealed Cabinet Door Hinges with Screws O43776
30 Pieces 3/8 inch Overlay Soft Closing Concealed Cabinet Door Hinges with Screws O43776
PACKAGE CONTENT: 30 Pieces 105 Degree 3/8' Overlay Soft Close Face Frame Cabinet Door Hinges
OVERLAY TYPE: 3/8 Inch Overlay, CUP DIAMETER: 35 mm (1-2/5'); DEPTH: 11 mm(2/5'); HOLE DISTANCE: 45 mm(1-4/5'); MATERIAL: High Quality Steel; FINISH: Nickel Plated; OPENING ANGLE; 105 Degree.
MAIN FEATURES: No more slamming doors. The soft-close feature ensures cabinet doors close gently and silently. Improves the life span. The soft-close feature ensures doors are always closed properly, lessening the need for maintenance. It also puts less stress on cabinet door hinges, greatly extending the life of your cabinets.
SAFETY: Safe for kids. The soft-close mechanism closes cabinet doors slowly and softly, preventing little fingers from getting pinched.
USING: These Type Hinge An Ideal Choice For Face Frame Cabinets. It's Useful For Kitchen Cabinet Doors, Wardrobe, TV Cabinets, Bookcases, Wine And Other Luxury Door Connection.
MAIN SPECIFICATION
* OPENING ANGLE: 105 Degree.

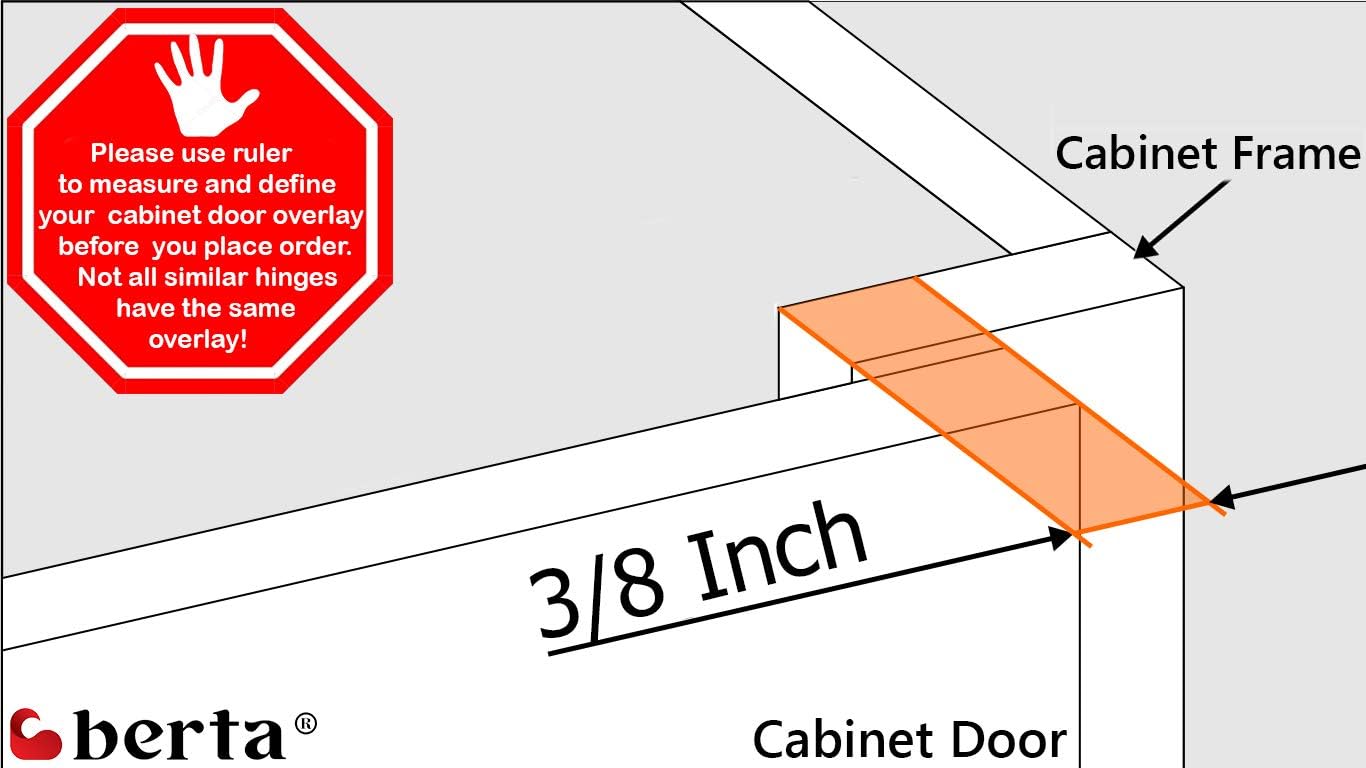

* OVERLAY: 3/8' Overlay.
* CUP DIAMETER: 1-2/5”(35 mm)
* CUP DEPTH: 2/5'(11 mm)
* SUITABLE DOOR THICKNESS: 3/5'-1'(14 – 26 mm)
* SCREW HOLE CENTER TO CENTER: 1-4/5'(45 mm)
* MATERIAL: Cold Rolled-Steel.
* FINISH: Nickel Plated.
* CLOSING TYPE: Soft Close.
* ADJUSTMENT: 2-cam adjustable: Side(-2mm +2mm) and Depth(-2mm +2mm).
* CABINET TYPE: Face Frame.
* NOTE: Our hinges are for face frame cabinets

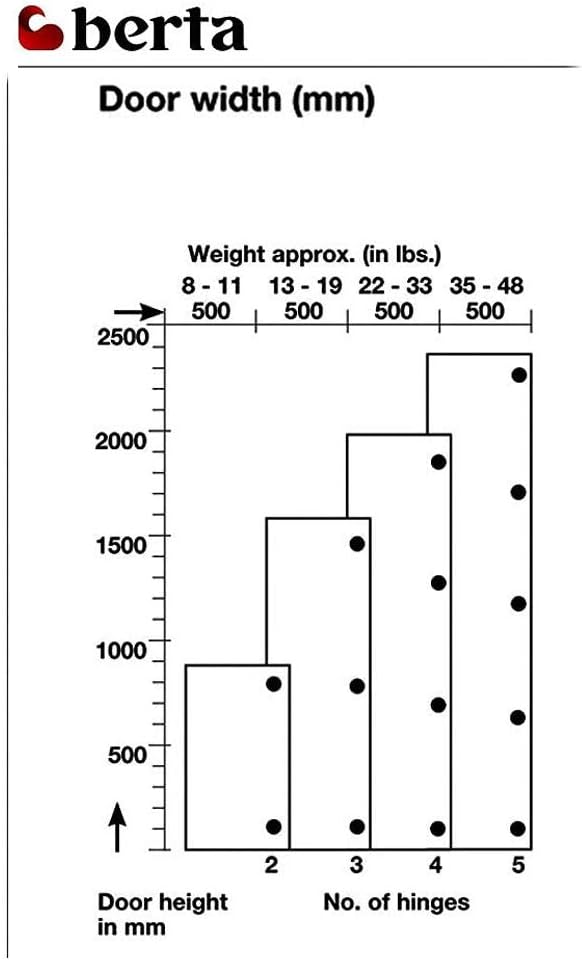

SUITABLE DOOR HEIGHT
Q= Hinges’ Quantity
H= Doors’ Height(mm)
H <= 900 Q=2
900 1600 2100
MAIN FEATURES
4-Ways 2-Cam Adjustment (Vertical and Depth) help easy to install. These hinges are for face frame cabinet. It is ideal for doors requiring multiple hinges to be fitted.
