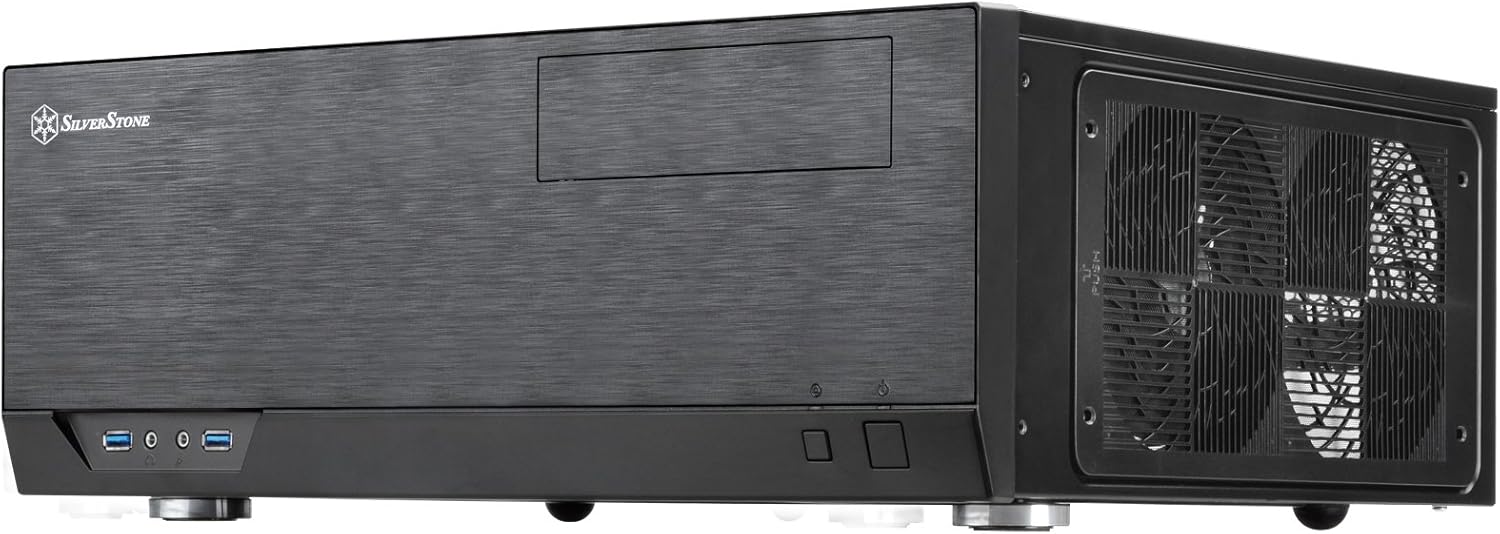

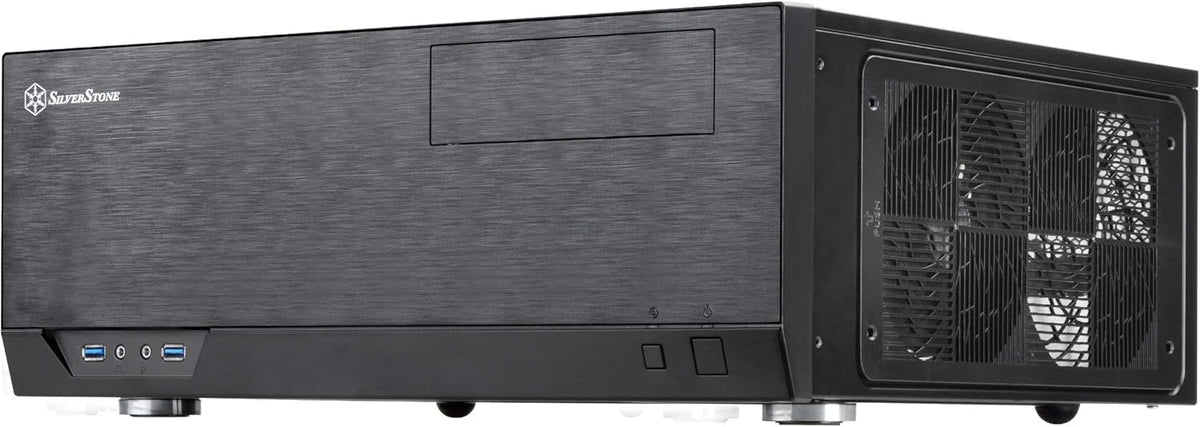

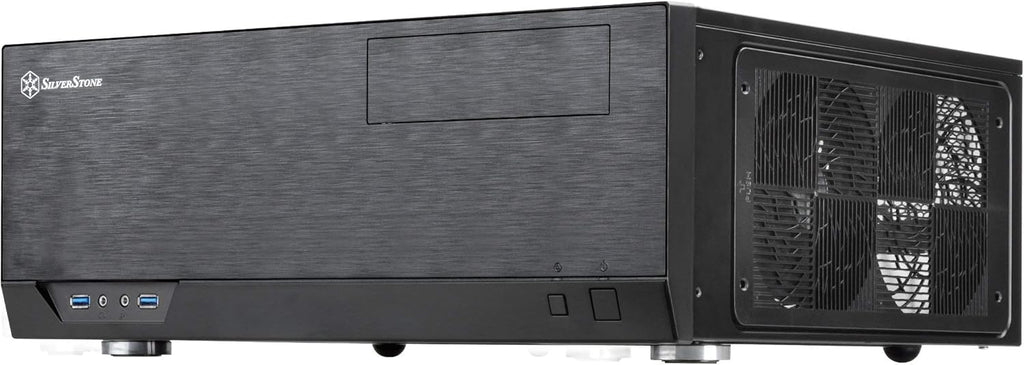

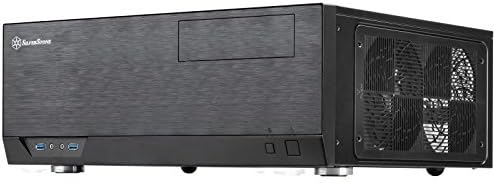

Black Aluminum HTPC Computer Case K233
Sale price
$16.50
Regular price $76.28
Skip to product information
Positive air pressure design for excellent cooling/quietness and dust-prevention
Support expansion cards up to 12.2 inches
Support ATX motherboards
Quick access filters included
Incredible 358mm depth to fit comfortably inside home theater cabinet
Black Aluminum HTPC Computer Case K233
Sale price
$16.50
Regular price $76.28
Shipping calculated at checkout.
Positive air pressure design for excellent cooling/quietness and dust-prevention
Support expansion cards up to 12.2 inches
Support ATX motherboards
Quick access filters included
Incredible 358mm depth to fit comfortably inside home theater cabinet
As the leader in HTPC design, SilverStone's Grandia GD09 and GD10 are the pinnacle of space efficiency and compatibility. Designed to fit full size components such as ATX power supply, ATX Motherboard, 5.25 Drive, 3.5, and 2.5 Drives, it is still compact enough to fit inside most living room TV stand or home theater cabinet comfortably.
| GD09B | GD10B | GD05B | GD06B | GD07B | GD08B | |
|---|---|---|---|---|---|---|
| Dimensions | 17.32' (W) x 6.69' (H) x 14.09' (D) | 17.4' (W) x 6.73' (H) x 14.25' (D) | 17.32' (W) x 5.94' (H) x 12.8' (D) | 17.32' (W) x 5.91' (H) x 13.39' (D) | 17.32' (W) x 6.89' (H) x 17.13' (D) | 17.32' (W) x 6.89' (H) x 16.73' (D) |
| 5.25' Drive bay | 1 (compatible with 1 x 3.5' or 2 x 2.5') | 1 (compatible with 1 x 3.5' or 2 x 2.5') | 1 | 1 | 4 | 2 |
| 3.5' Drive bay | 2 (1 compatible with 2.5') | 2 (1 compatible with 2.5') | 3 (1 compatible with 2.5') | 7 (2 hot swappable, 1 compatible with 2.5') | 5 | 8 |
| 2.5' Drive bay | 1 | 1 | 2 | 2 | 2 | 2 |
| Fan Slots | 2 x 80mm, 3 x 120mm | 2 x 80mm, 3 x 120mm | 2 x 80mm, 3 x 120mm | 2 x 80mm, 3 x 120mm | 2 x 80mm, 4 x 120mm | 2 x 80mm, 4 x 120mm |
| Included Fans | 1 x 120mm | 3 x 120mm | 3 x 120mm | 3 x 120mm | 3 x 120mm | 3 x 120mm |
| CPU Cooler Limit | 88mm with optical drive, 138mm without | 88mm with optical drive, 138mm without | 70mm with optical drive, 120mm without | 70mm with optical drive, 120mm without | 138mm | 138mm |
| Expansion Card Limit | Seven up to 12.2' long, 5.25' tall | Seven up to 12.2' long, 5.25' tall | Four up to 11' long, 4.92' tall | Four up to 11' long, 4.92' tall | Seven up to 13.6' long, 5.25' tall | Seven up to 13.6' long, 5.25' tall |
| PSU Limit | 220mm, 150mm to use adjacent fan slot | 220mm, 150mm to use adjacent fan slot | 180mm | 150mm | 220mm | 220mm |
| Front Panel Type | Plastic with faux aluminium finish | Aluminum door with plastic front panel | Aluminum skin over plastic front panel | Aluminum front door and plastic front panel | Aluminum front door and plastic front panel | Aluminum front panel |
