8-Port Gigabit PoE+ Switch, Black R275
8-Port Gigabit PoE+ Switch, Black R275
ETHERNET PORT CONFIGURATION: 8 Gigabit PoE+ ports with LED indicators provide a 16Gbps switching capacity to support edge network installations.
DESKTOP DESIGN: With a compact and lightweight metal housing design, this Ethernet switch is well-suited for desktop installations.
PoE+ POWER: A 61W PoE power budget supports up to eight Power over Ethernet devices. TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras.
PLUG-AND-PLAY: Simply power up the switch and plug in connected devices. No software to install or configuration needed.
DATA TRANSFER RATE: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)

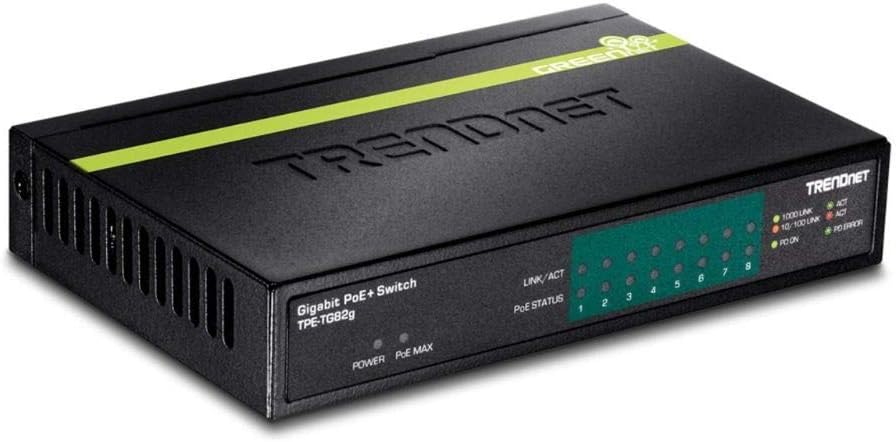

The 8-Port Gigabit PoE+ Switch, model TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE and PoE+ devices with a 61W PoE budget. Plug and Play this sturdy metal switch for reliable high-speed PoE networking.

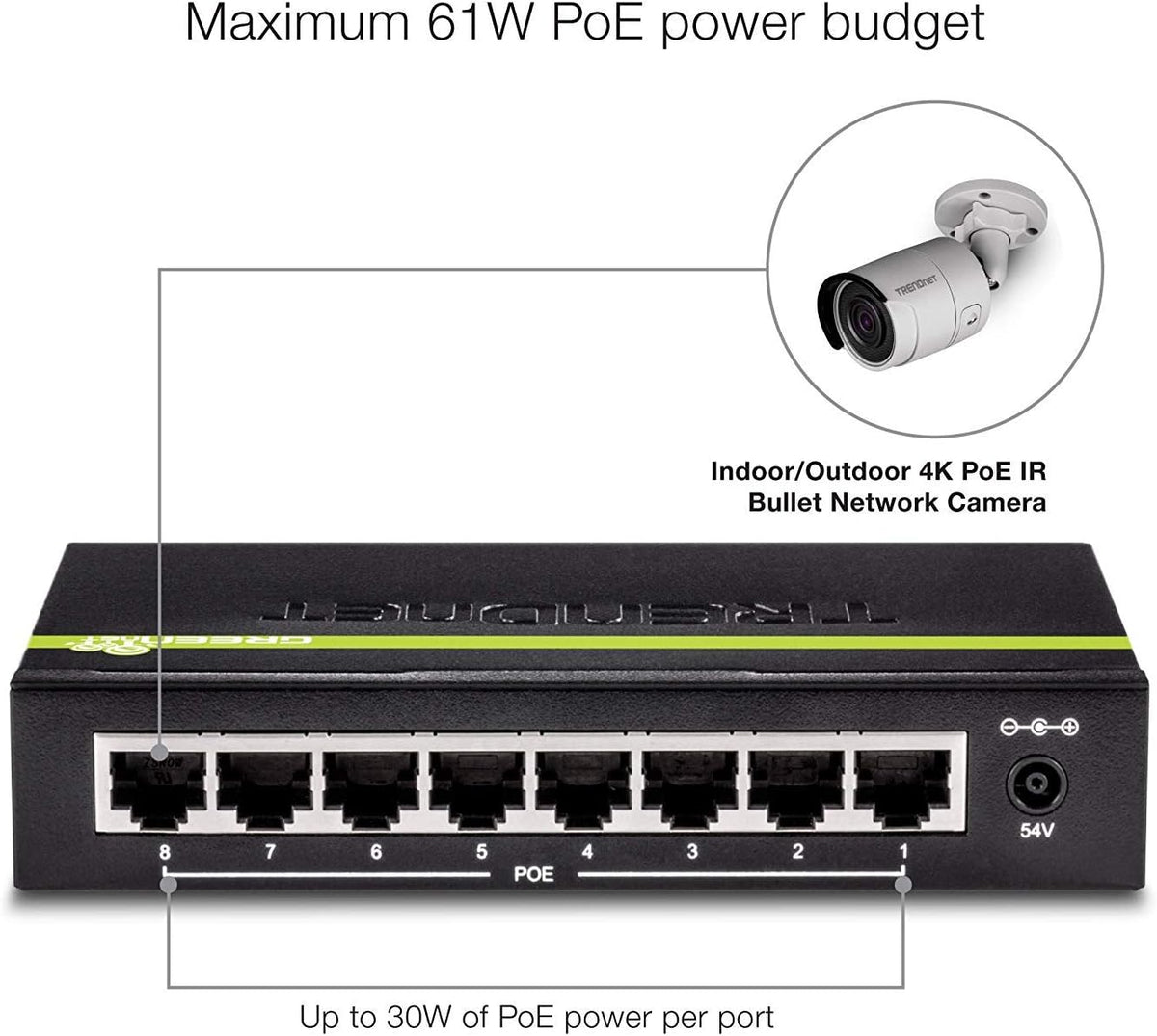

PoE Power
A 61W PoE power budget supports up to eight Power over Ethernet devices.

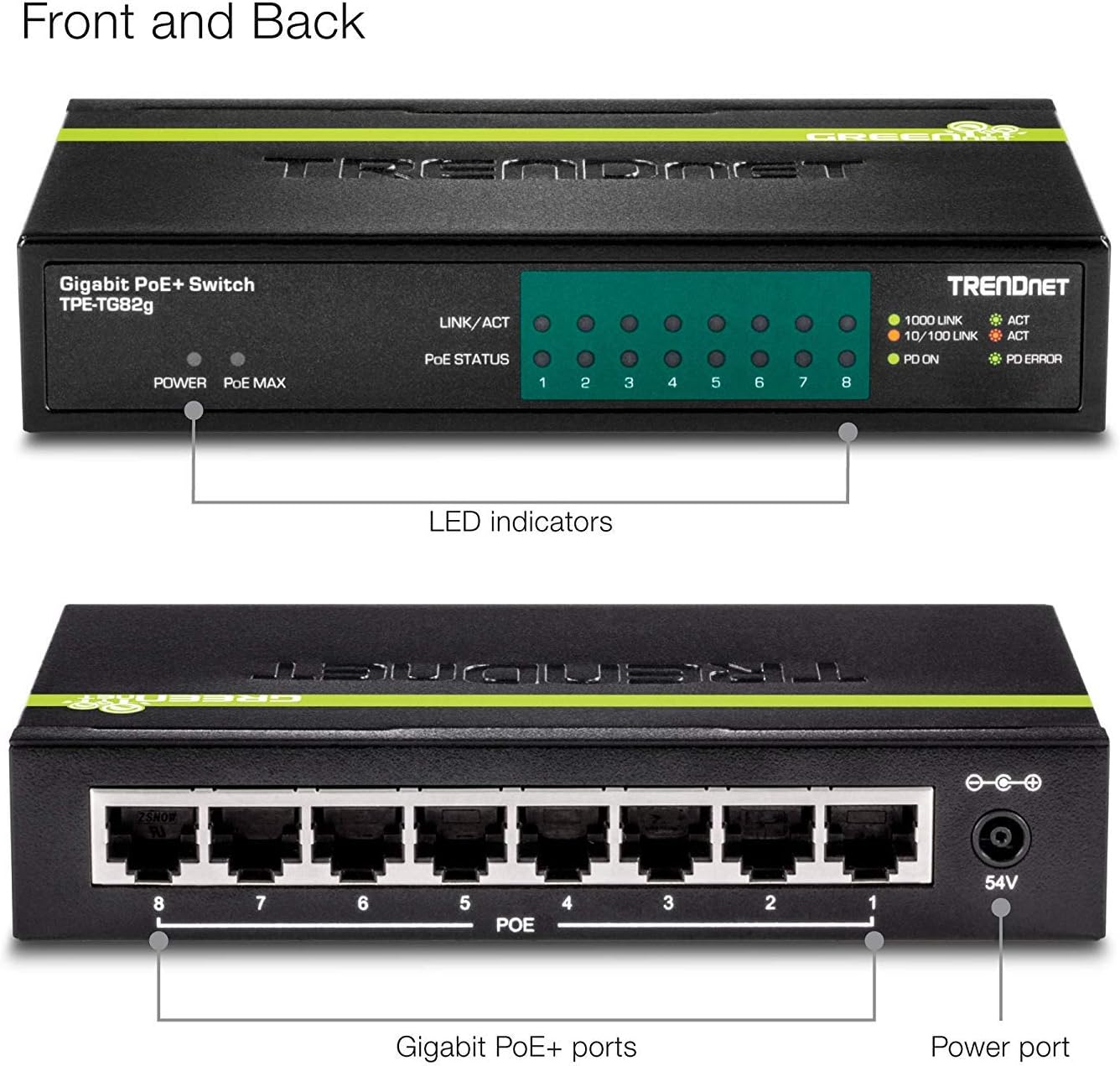

Gigabit Ethernet
Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.

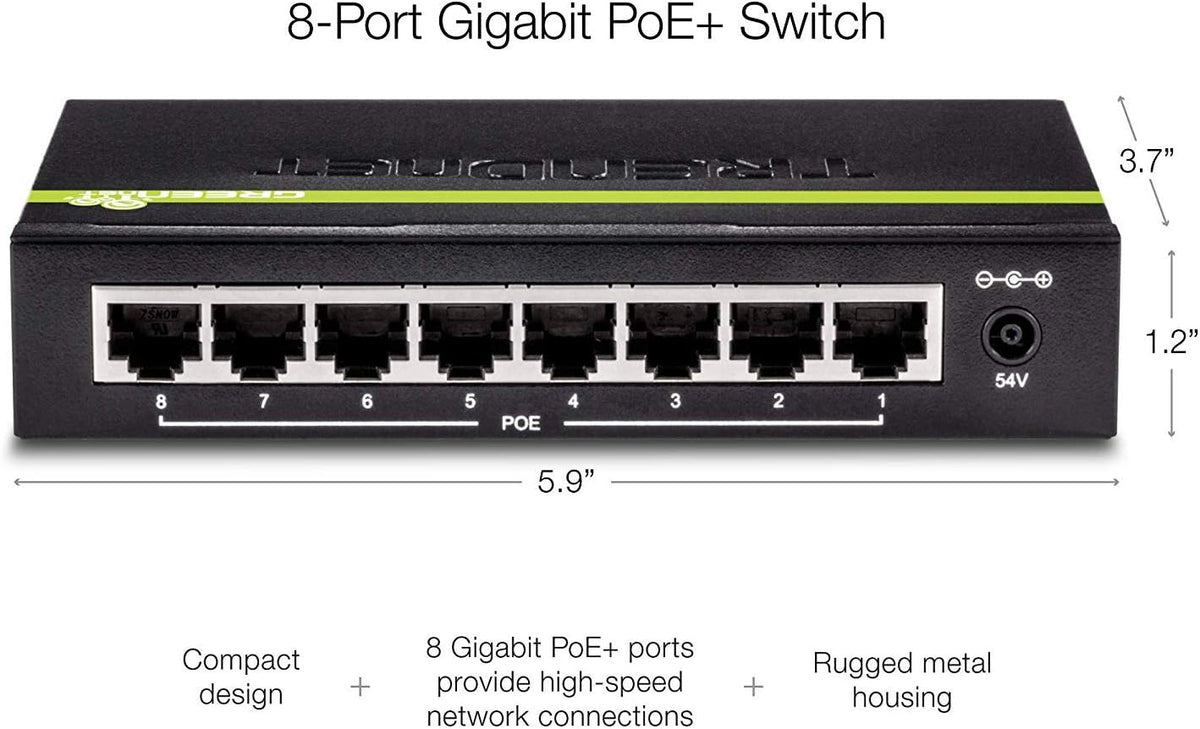

Compact Design
With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.
Package Contents:
- TPE-TG82g
- Quick Installation Guide

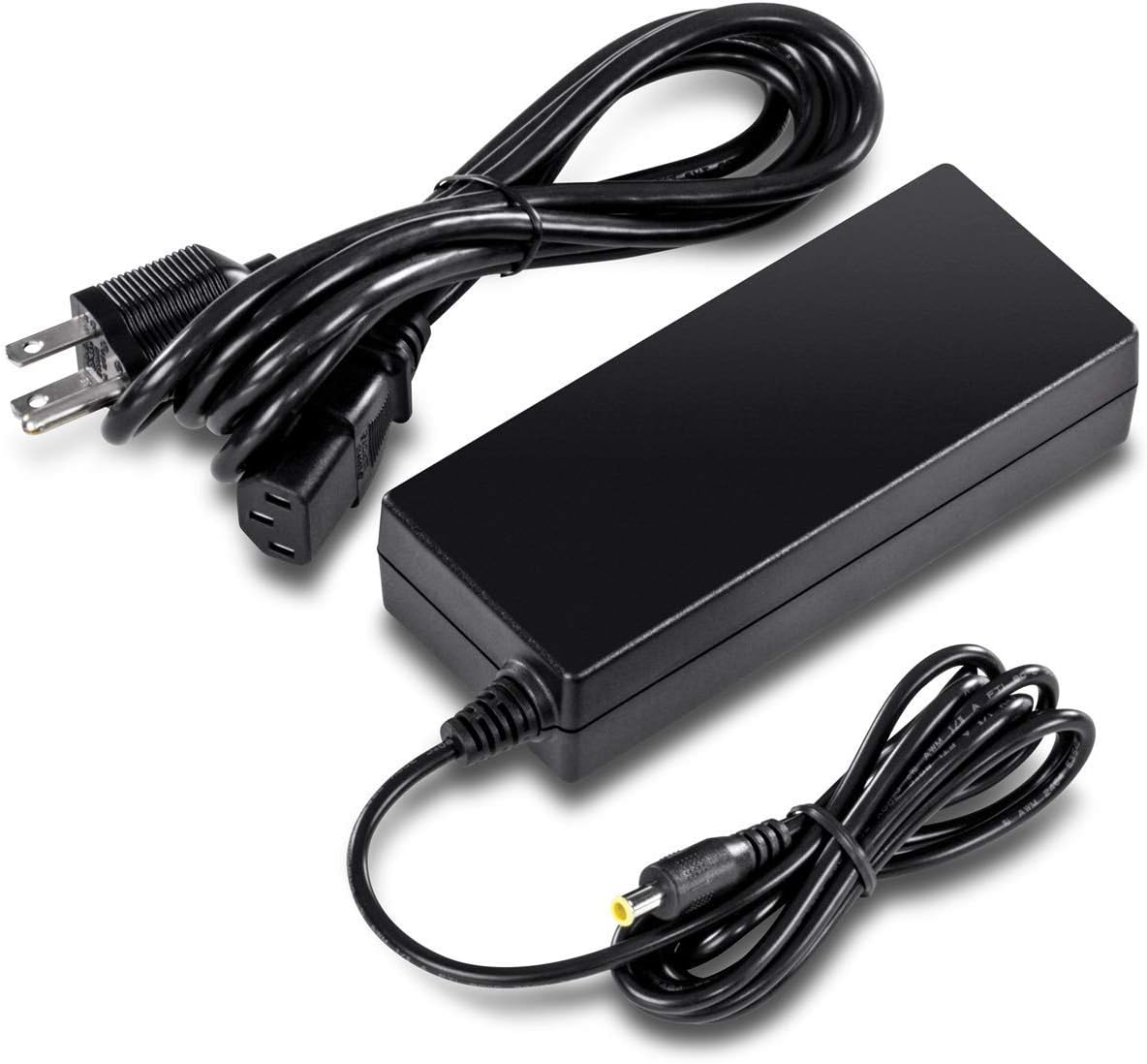

- Power Brick (54V DC, 1.67A)
- Power cord
| TPE-TG44g | TPE-TG50g | TPE-TG80g | TPE-TG81g | TPE-TG82g | |
|---|---|---|---|---|---|
| Gigabit Ports | 4 x Gigabit PoE/PoE+ Ports | 4 x Gigabit PoE/PoE+ Ports | 8 x Gigabit PoE/PoE+ Ports | 8 x Gigabit PoE/PoE+ ports | 8 x Gigabit PoE/PoE+ Ports |
| POE Budget | 61 Watts | 31 Watts | 123 Watts | 110 Watts | 61 Watts |
| Power Consumption | 65.22 Watts (max.) | 34 Watts (max.) | 5.3 Watts (max. without PD) | 130 Watts (max.) | 36 Watts (max.) |
| MAC Address | 8 K Entries | 8 K Entries | 8 K Entries | 4K Entries | 8K Entries |
| Jumbo Frame | 9 KB | 9 KB | 9 KB | 9 KB | 9 KB |
| Switch Fabric | 16 Gbps | 10 Gbps | 16 Gbps | 16 Gbps | 16 Gbps |
| Data Ram Buffer | 128 KB | 128 KB | 128 KB | 192 KB | 128 KB |
| Data Transfer Rate | Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) •Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) •Gigabit Ethernet: 2000 Mbps (Full Duplex) | Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) •Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) •Gigabit Ethernet: 2000 Mbps (Full Duplex) | Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) •Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) •Gigabit: 2000 Mbps (Full Duplex) | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) •Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) •Gigabit: 2000Mbps (full duplex) | Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) •Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) •Gigabit Ethernet: 2000 Mbps (Full Duplex) |

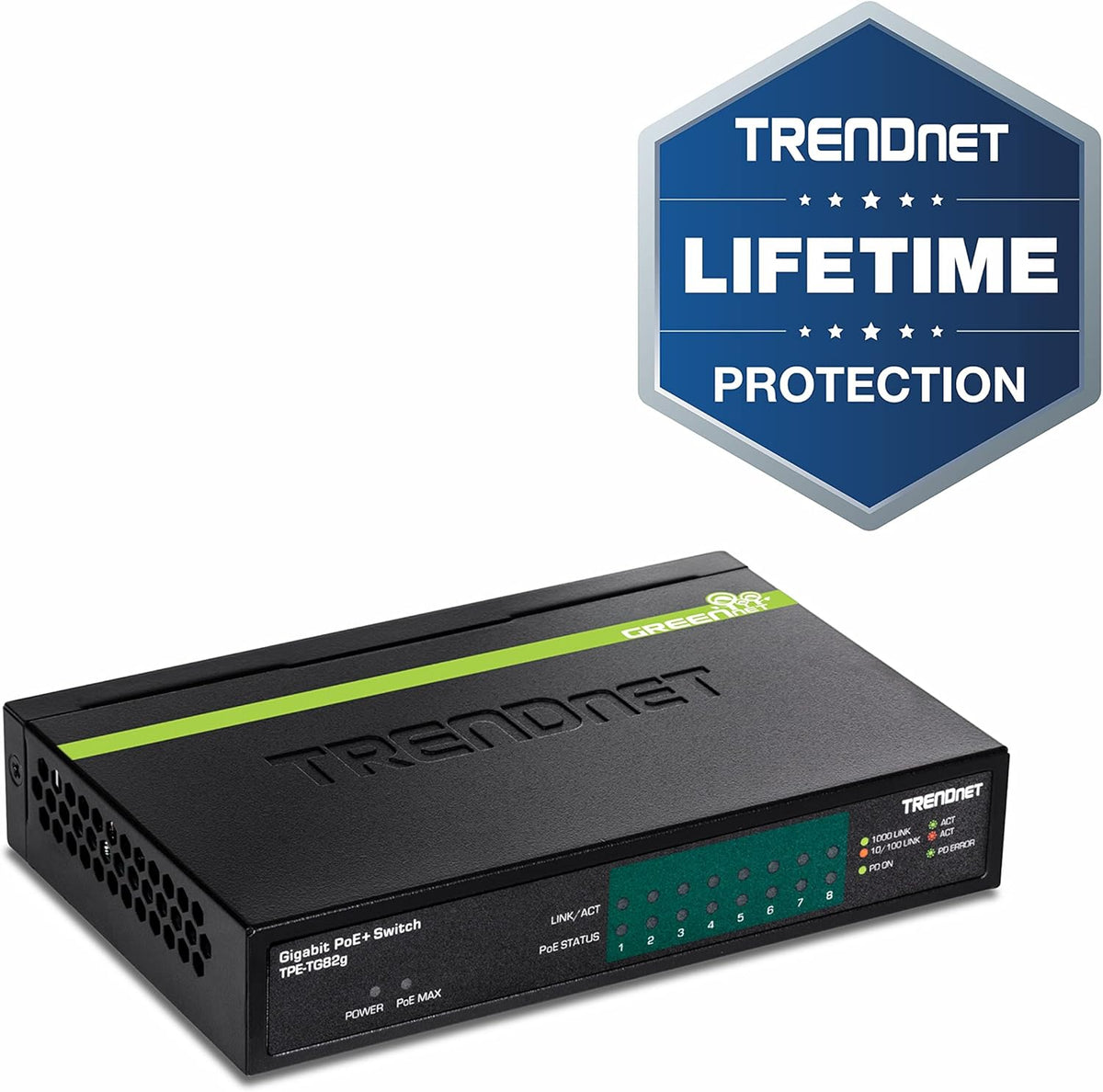

| TRENDnet Product Coverage | Lifetime | Lifetime | Lifetime | Lifetime | Lifetime |
